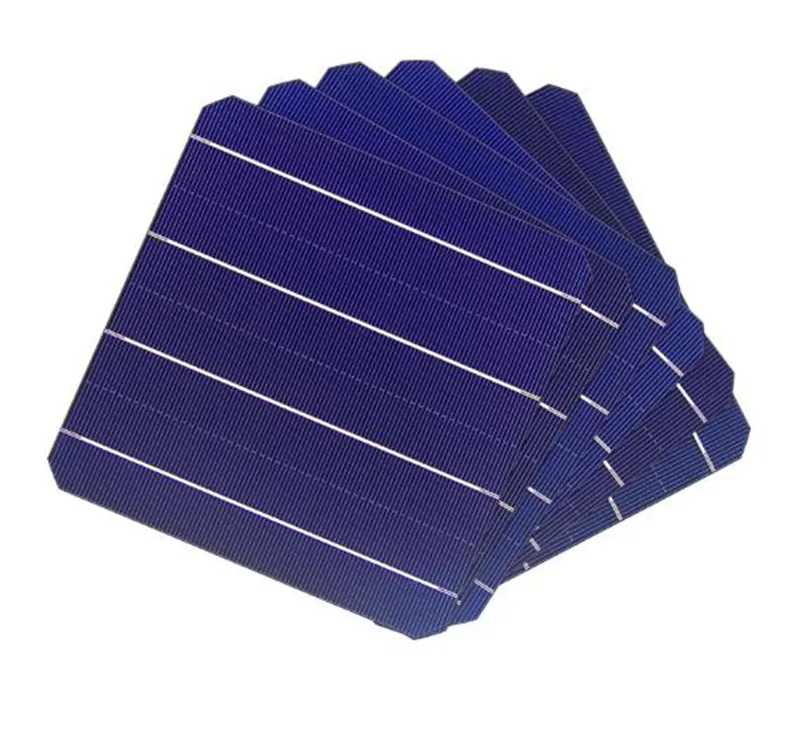

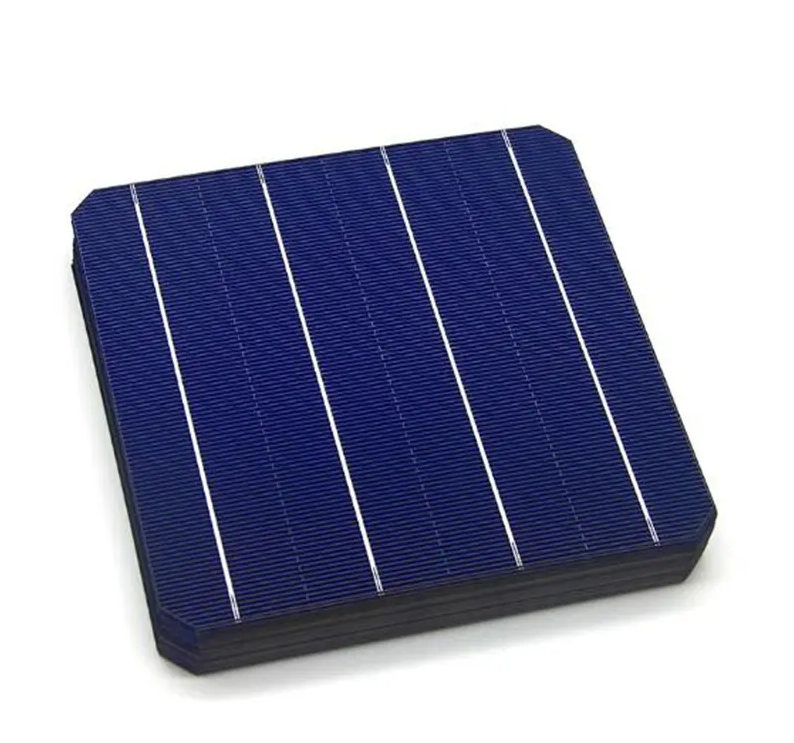

Solar Cell 166*166mm
Bestop
8541430000
Product Description
Solar Cell Production Line
Cleaning & Texturing: Wafers are cleaned with industrial soaps and form square-based pyramids also called texture. The texturization helps to reduce the reflection of sunlight.
Diffusion: Wafers that have been pre-droped with boron during the casting process are then given a negative(n-type) surface characteristic by diffusing them with a phosphorus source at high temperature, which in turn creats the negative/positive(n-p) junction.
Etching: Phosphorus diffuses not only into the desired wafer surface but also into the side and the opposite surface to form PN. This gives a shunt path between the cell front and rear. Removal of the path around the wafer edge/edge junction isolation is named etching.
Printing & Heating: it was adopted by printing paste with screen technology to print the electrodes of silicion solar, and form a good ohmic contact.
Testing & Sorting: It means classifying the cells according to their efficiency tested under the simulated sunlight.
Mechanism parameters
| Efficiency(%) | Pmp(W) | Umpp(V) | Impp(A) | Uoc(V) | Isc(A) |
| 22.9 | 6.28 | 0.586 | 10.713 | 0.686 | 11.204 |
| 22.8 | 6.25 | 0.585 | 10.685 | 0.685 | 11.184 |
| 22.7 | 6.22 | 0.584 | 10.656 | 0.684 | 11.164 |
| 22.6 | 6.2 | 0.583 | 10.627 | 0.683 | 11.143 |
| 22.5 | 6.17 | 0.582 | 10.599 | 0.682 | 11.122 |
| 22.4 | 6.14 | 0.581 | 10.57 | 0.681 | 11.101 |
| 22.3 | 6.11 | 0.58 | 10.541 | 0.68 | 11.08 |
| 22.2 | 6.09 | 0.579 | 10.511 | 0.679 | 11.062 |
| 22.1 | 6.06 | 0.578 | 10.482 | 0.678 | 11.043 |
Technical Parameter
| Size | 166mm*166mm±0.3mm | TkVoltage：-0.36%/K |
| Thickness | 170±30μm | TkCurrent：+0.07%/K |
| Front（-） | Front side busbar width9*0.1±0.05mm | TkPower：-0.38%/K |
| Back（+） | Rear side busbar width1.4±0.5mm | Rsh≥35Ω，Irev2≤0.8A |
Production Workshop
Quality Control
Project Installation
After-sales Service
We provide after-sales installation and post-maintenance guidance. When you purchase our products, our service has just begun.
On-site guided installation
Remote guided installation
Our Advantages
Packaging&Shipping
FAQ
Q1. What's the delivery time?
A: Within 200pcs, the delivery time is about 14 days. More quantity need check.
Q2. What is your terms of payment?
A: Usually our payment terms is T/T 30% as deposit, and TT70% or L/C 70% at sight before delivery. We'll show you the photos of the products and packages before you pay the balance. The payment can be negociated.
Q3. What's the MOQ?
A: The Minimum order quantity is 10 pieces for each model.
Q4. What's the life time of your battery?
A: The battery designed lifetime is 5 years.
Q5. If there are defective batteries in the warranty, what's your policy to replace them?
A: Please take the photos of the broken batteries for us and tell us what happen, if everything is confirmed, the new ones will be sent to you as compensation in the next order.
Q6. Do you offer OEM service?
A: Sure, we can offer the OEM service, and the MOQ is 300 pieces for OEM models.Besides, we can make the brand and packing design.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9:What material is being used in the manufacturing of your batteries?
A:The plates are made of high purity lead (99.994%-99.996%), make the longer service life.
