| Cell Number: | |
|---|---|
| Packing: | |
| Stander: | |
| Nominal Max. Power (Pmax): | |
| Quantity: | |

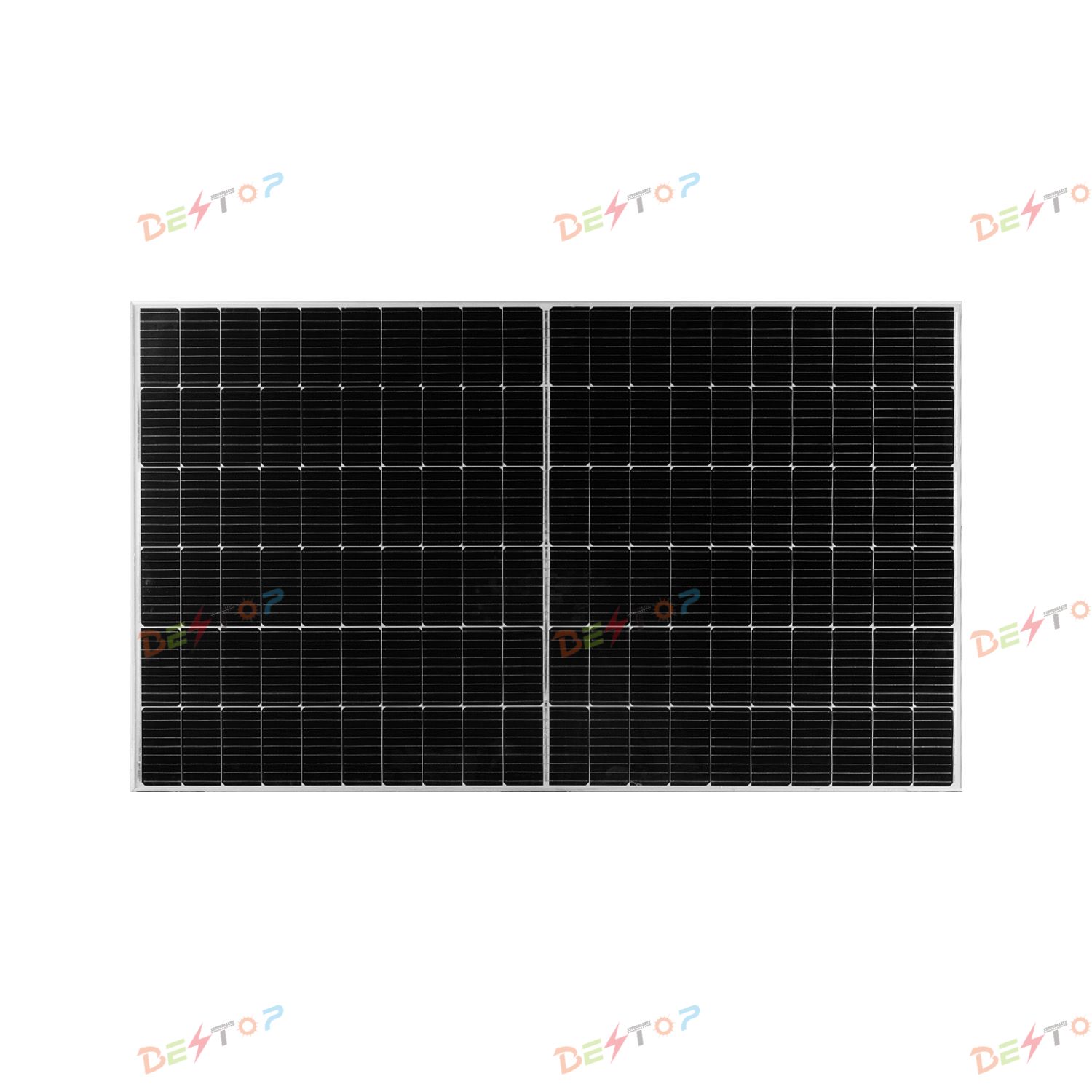

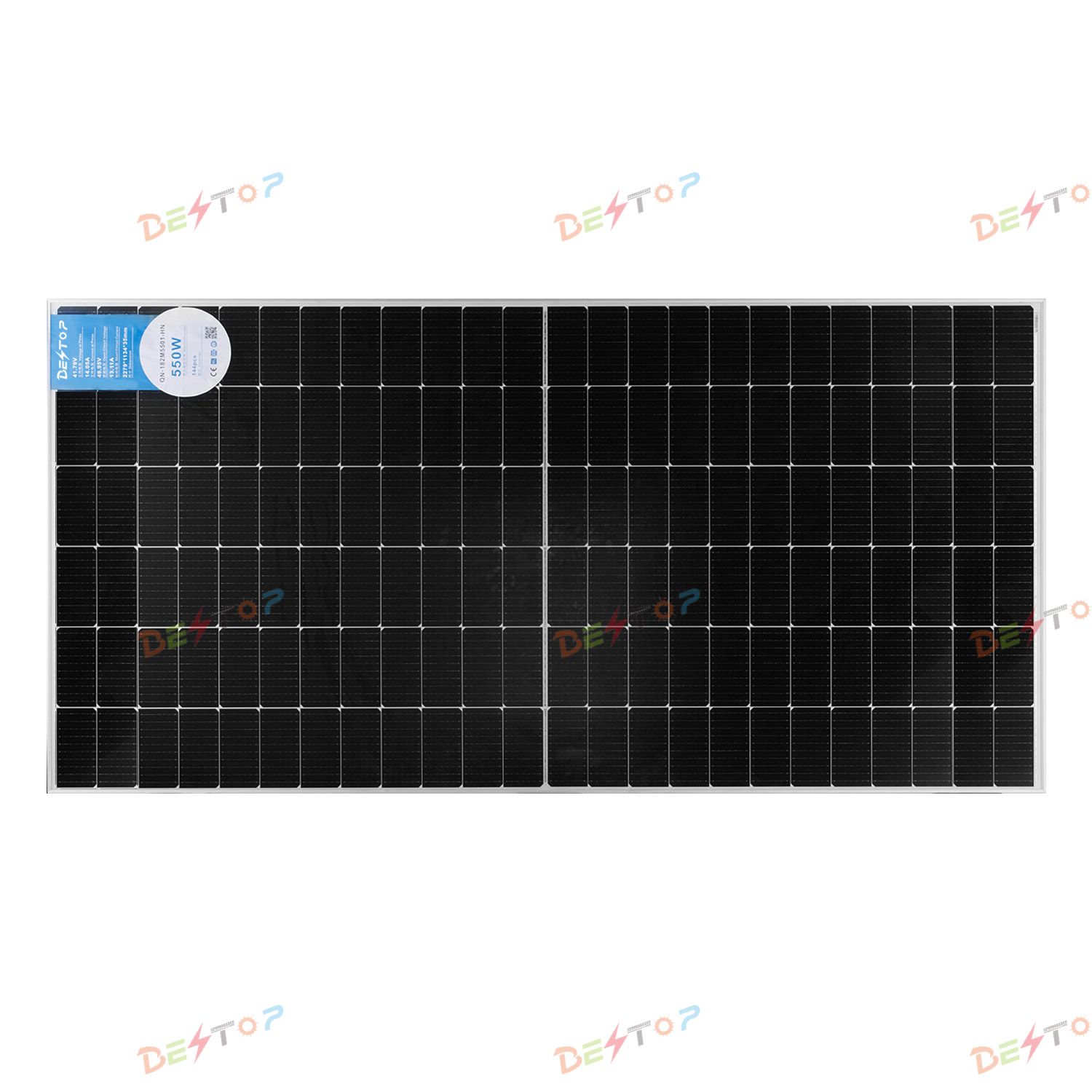

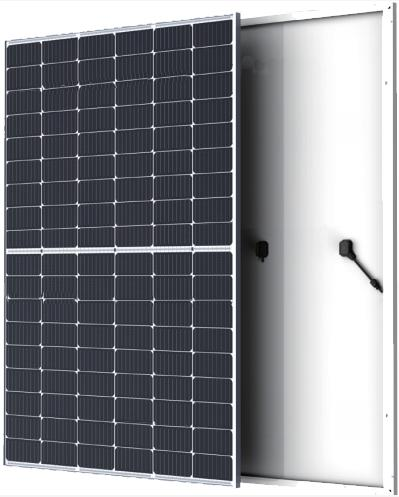

BT-solar panel
Bestop
0256879

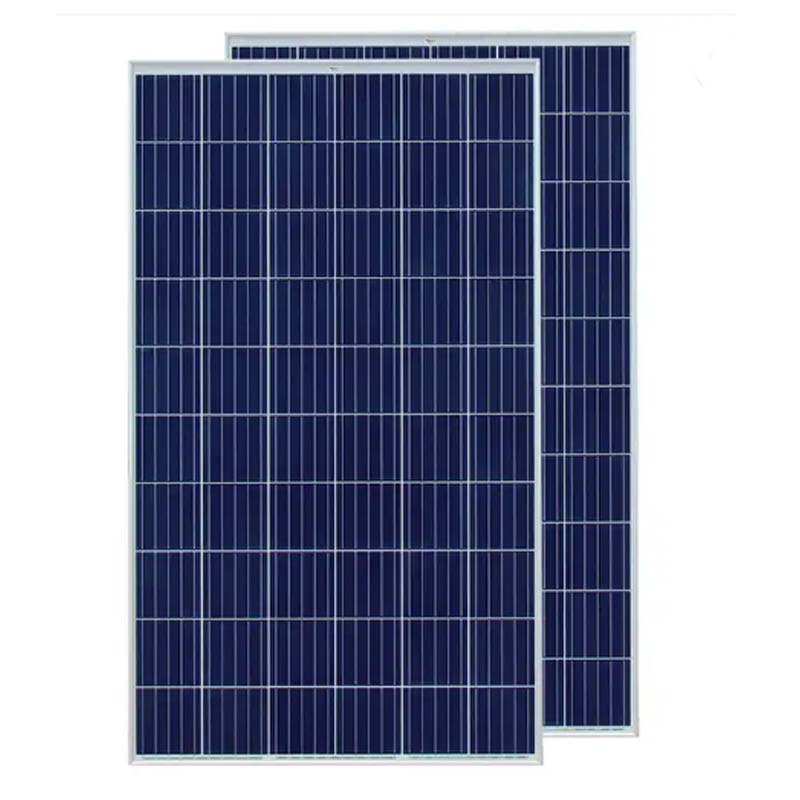

Solar panels made of crystalline silicon are only suitable for outdoor use in sunny places. The conversion efficiency of monocrystalline silicon solar panels is 20-24%, and the conversion efficiency of polycrystalline silicon solar panels is around 14-19%. The price of monocrystalline silicon is higher than that of polycrystalline silicon.

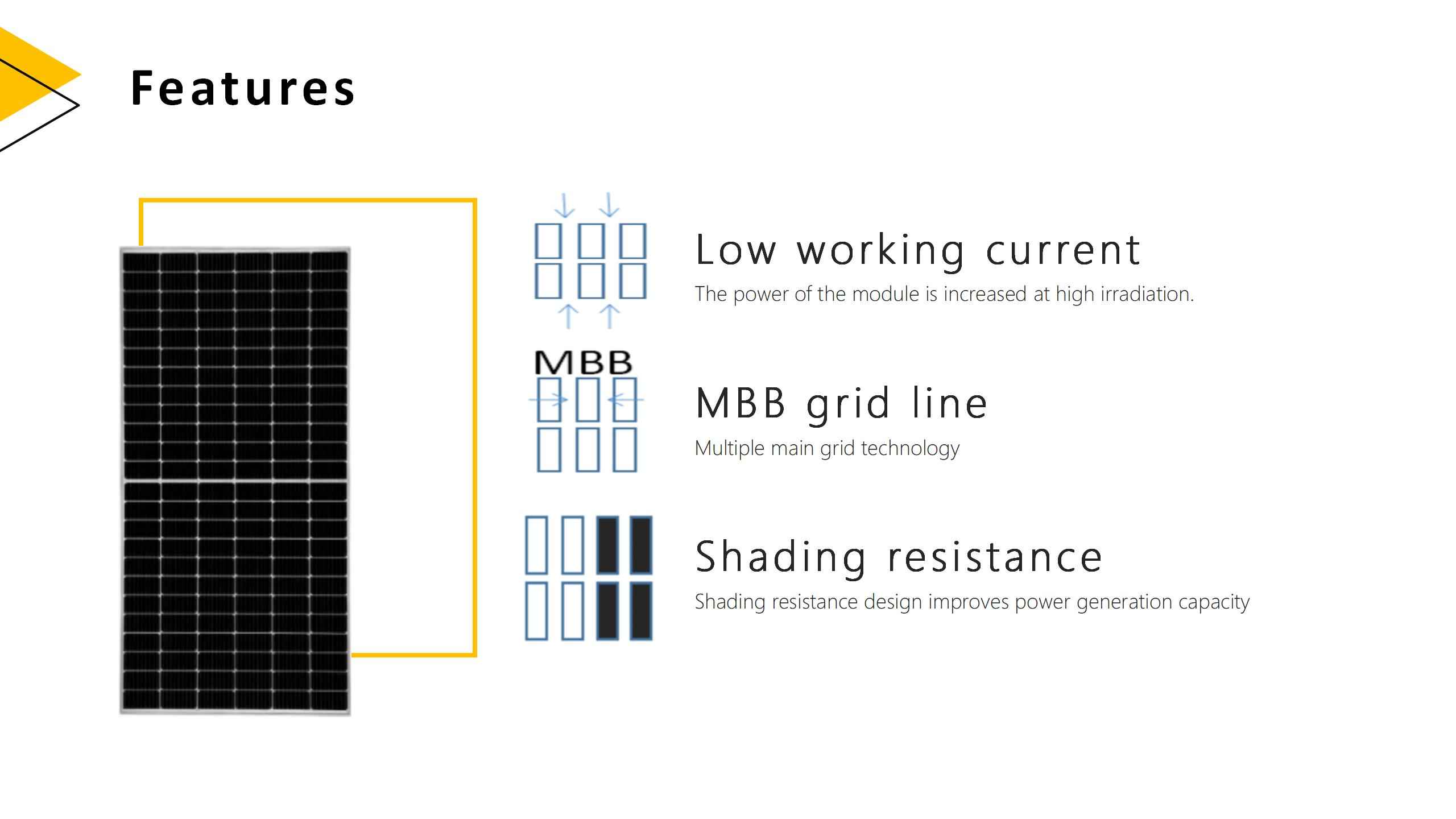

Feature

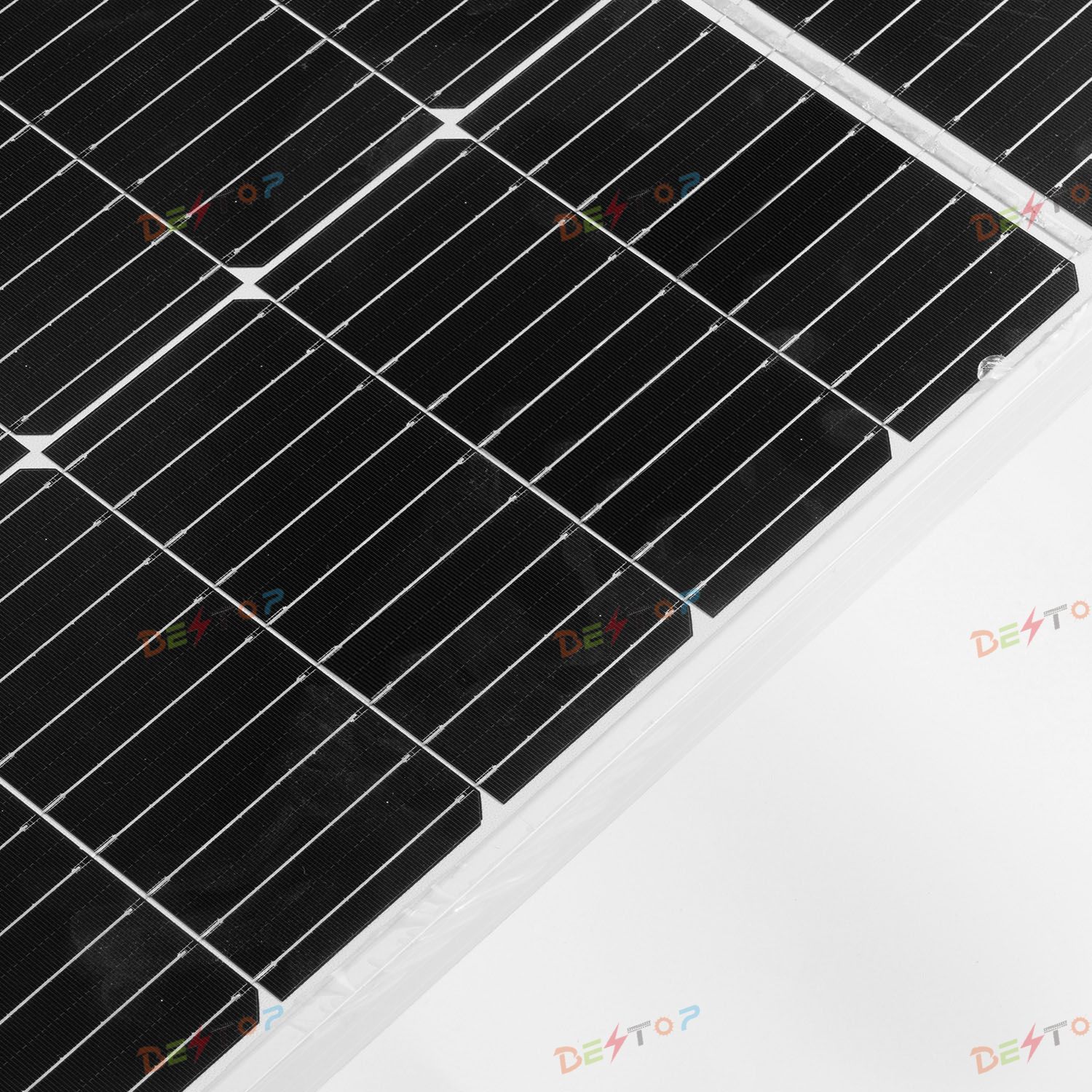

MBB & Half Cut cell technology
Guaranteed 0~+5W positive
tolerance to ensure power output
Our Advantage
Dual stage 100% EL Inspection
Warranting Defect-Free Product
Excellent mechanical load 2400Pa
and snow load 5400Pa resistance
Lower BOS cost and LCOE
Less hot spot &shading effects
Excellent PID resistance.
| Nominal Max. Power (Pmax) | 525W | 530W | 535W | 540W | 545W | 550W |
| Opt. Operating Voltage (Vmp) | 40.7V | 40.9V | 41.1V | 41.3V | 41.5V | 41.7V |
| Opt. Operating Current (Imp) | 12.90A | 12.96A | 13.02A | 13.08A | 13.14A | 13.20A |
| Open Circuit Voltage (Voc) | 48.6V | 48.8V | 49.0V | 49.2V | 49.4V | 49.6V |
| Short Circuit Current (Isc) | 13.75A | 13.80A | 13.85A | 13.90A | 13.95A | 14.00A |
| Module Efficiency | 20.50% | 20.70% | 20.90% | 21.10% | 21.30% | 21.50% |
| Operating Temperature | ~40°C ~ +85°C | |||||
| Max. System Voltage | 1500V (IEC) or 1000V (IEC) | |||||
| Module Fire Performance | CLASS C (IEC 61730) | |||||
| Max. Series Fuse Rating | 30 A | |||||
| Application Classification | Class A | |||||
| Power Tolerance | 0 ~ + 10 W | |||||
| Cell Type | 182mm wafer /Mono-crystalline | |||||
| Cell Arrangement | 144 [2x (12 x6) ] | |||||
| Dimensions | 2261 * 1134* 35 mm(89.0* 44.6 *1.38 in) | |||||
| Weight | 27.8 kg (61.3 lbs) | |||||
| Front Cover | 3.2 mm tempered glass | |||||
| Frame | Anodized aluminium alloy, crossbar enhanced | |||||
| J-Box | IP68, 3 bypass diodes | |||||
| Cable | 4 mm2 (IEC) | |||||

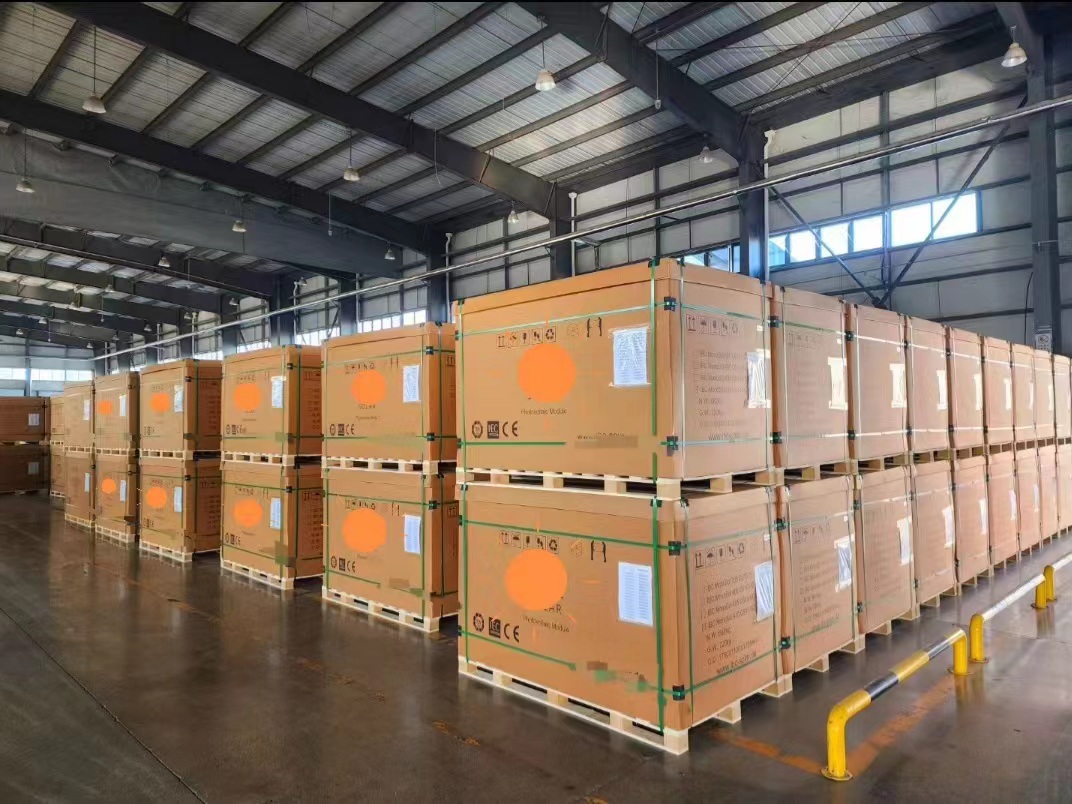

| Per Pallet | 31 pieces | |||||
| Per Container | 40HQ/620 pieces | |||||
