| AC Voltage Regulation (Batt.Mode): | |
|---|---|
| Surge power: | |
| Wave form: | |
| Battery Voltage: | |
| MAX.PV Array Power: | |
| Quantity: | |
BT-SIVT
Bestop
054789758

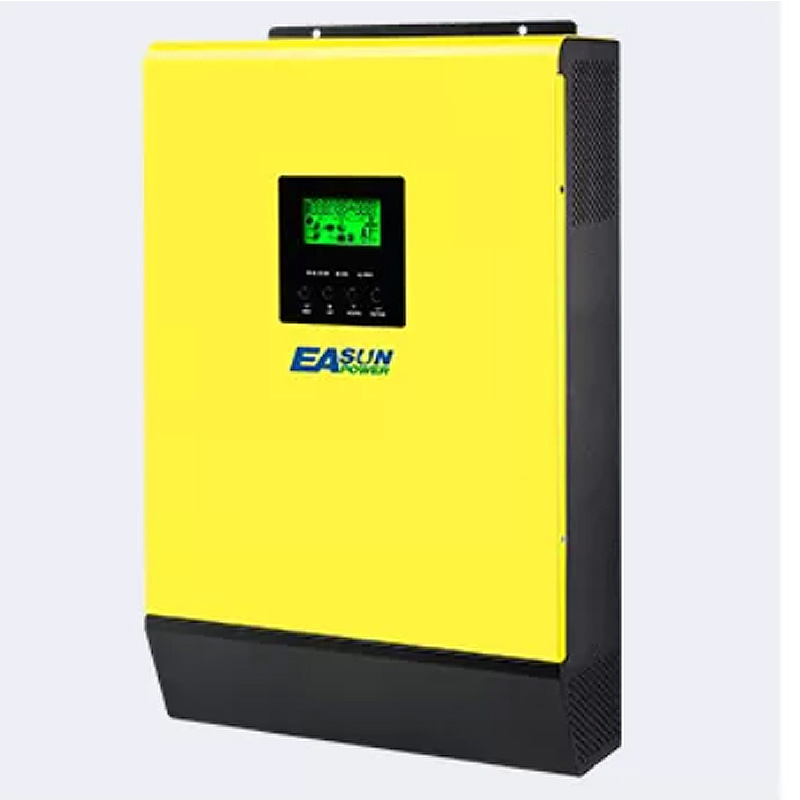

| Models | ISolar-SMH-II-2.2KW | ISolar-SMH-II-3.2KW |
| Rated Power | 2200VA/1800W | 3200VA/3000W |
| INPUT | ||
| Voltage | 230Vac | |
| Selectable Voltage Range | (170Vac~280Vac) ±2%；(90Vac-280Vac)±2% | |
| Frequency Range | 50Hz/ 60Hz (Auto detection) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |
| Surge power | 4400VA | 6400VA |
| Transfer Time | 10ms (for personal computers) / 20ms (for home appliances) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 15.5VDC | 31VDC |
| Maximum charge current | 60A | |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 2000W | 3000W |
| MPPT Range@ Operating Voltage | 55-450VDC | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 405x286x98mm | |
| Net Weight (kgs) | 4.5kg | 5.0kg |
| Communication Interface | RS232/RS485(Standard) / GPRS/WIFI(Optional) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |
1. who are we?
We are based in Shandong, China, start from 2005
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Storage System,,Solar Controller,Grid Tie Inverter
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW CIF
