| Cell Number: | |
|---|---|
| Packing: | |
| Stander: | |
| Nominal Max. Power (Pmax): | |
| Quantity: | |

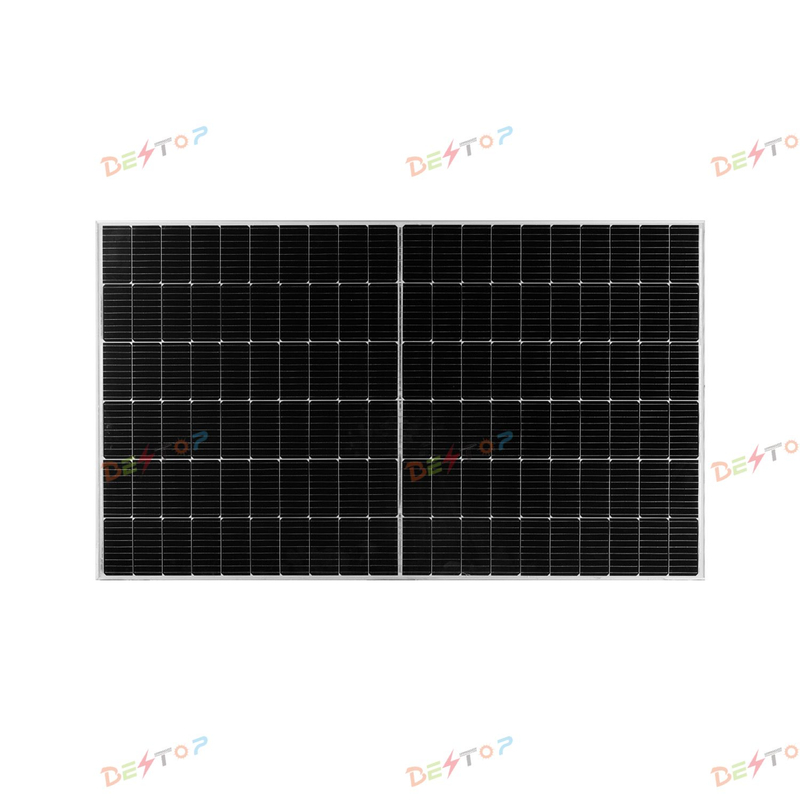

BT-SPALl03
Bestop
025687801
When sunlight shines on the semiconductor pn junction, new hole-electron pairs are formed. Under the action of the pn junction electric field, holes flow from the n region to the p region, and electrons flow from the p region to the n region. When the circuit is connected, current is formed. This is the working principle of the photovoltaic effect solar cell. 1. Solar power generation There are two ways to generate solar power, one is the light-heat-electricity conversion method, and the other is the light-electricity direct conversion method.
Feature
| Nominal Max. Power (Pmax) | 525W | 530W | 535W | 540W | 545W | 550W |
| Opt. Operating Voltage (Vmp) | 40.7V | 40.9V | 41.1V | 41.3V | 41.5V | 41.7V |
| Opt. Operating Current (Imp) | 12.90A | 12.96A | 13.02A | 13.08A | 13.14A | 13.20A |
| Open Circuit Voltage (Voc) | 48.6V | 48.8V | 49.0V | 49.2V | 49.4V | 49.6V |
| Short Circuit Current (Isc) | 13.75A | 13.80A | 13.85A | 13.90A | 13.95A | 14.00A |
| Module Efficiency | 20.50% | 20.70% | 20.90% | 21.10% | 21.30% | 21.50% |
| Operating Temperature | ~40°C ~ +85°C | |||||
| Max. System Voltage | 1500V (IEC) or 1000V (IEC) | |||||
| Module Fire Performance | CLASS C (IEC 61730) | |||||
| Max. Series Fuse Rating | 30 A | |||||
| Application Classification | Class A | |||||
| Power Tolerance | 0 ~ + 10 W | |||||
| Cell Type | 182mm wafer /Mono-crystalline | |||||
| Cell Arrangement | 144 [2x (12 x6) ] | |||||
| Dimensions | 2261 * 1134* 35 mm(89.0* 44.6 *1.38 in) | |||||
| Weight | 27.8 kg (61.3 lbs) | |||||
| Front Cover | 3.2 mm tempered glass | |||||
| Frame | Anodized aluminium alloy, crossbar enhanced | |||||
| J-Box | IP68, 3 bypass diodes | |||||
| Cable | 4 mm2 (IEC) | |||||
| Per Pallet | 31 pieces | |||||
| Per Container | 40HQ/620 pieces | |||||
