BT-ECG
Bestop
0789451
The working principle of the solar charging pile is to convert the solar energy into electricity, and the electricity is transmitted to the electric equipment such as electric vehicles through the charging equipment for charging. The specific process is as follows:
1. Solar photovoltaic panels receive sunlight and produce direct current.
2. The DC/DC converter converts the DC output of the panel into stable DC, which is supplied to the user's charging equipment or stored in the battery
3. If necessary, DC/AC converters convert DC to AC for use by the user's home appliances
About the EV Charging Station
Charging stations can be divided into four sub-modules according to their functions: power distribution system, charging system, battery scheduling system, and charging station monitoring system. Charging station for car charging is generally divided into three ways: ordinary charging, rapid charging, battery replacement. Ordinary charging is mostly AC charging, which can use 220V or 380V voltage. Fast charging is mostly DC charging. The main equipment of the charging station includes charging machine, charging pile, active filter device, and power monitoring system.

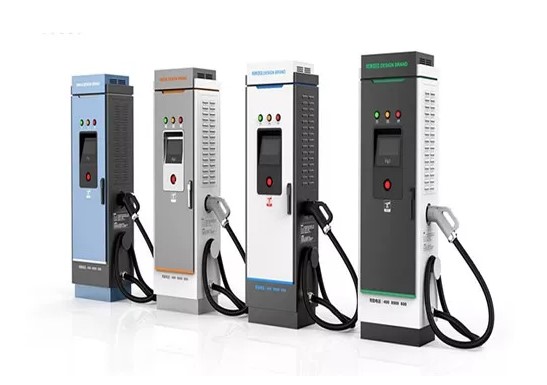

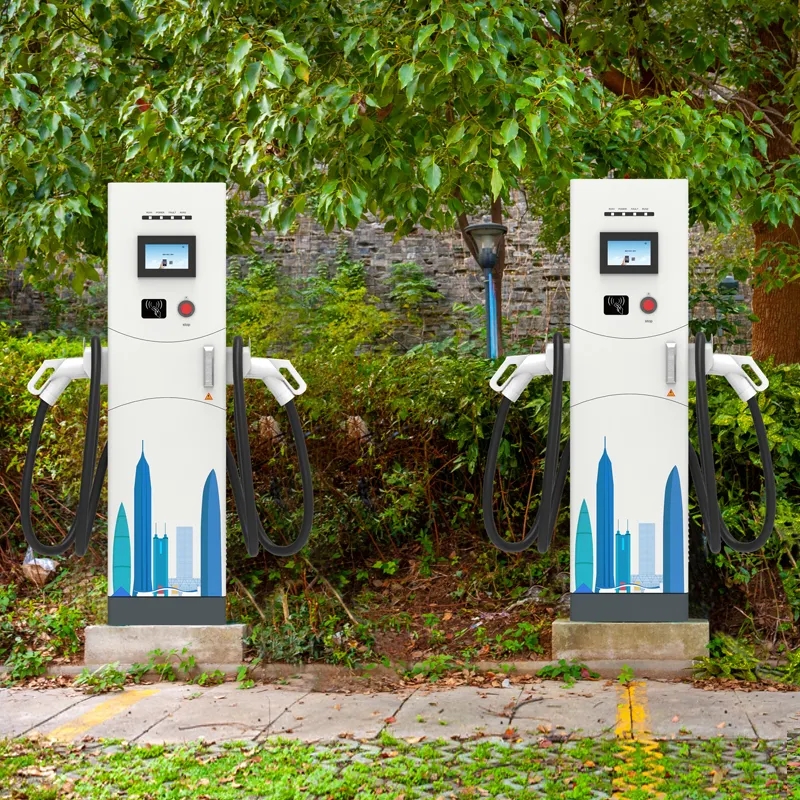

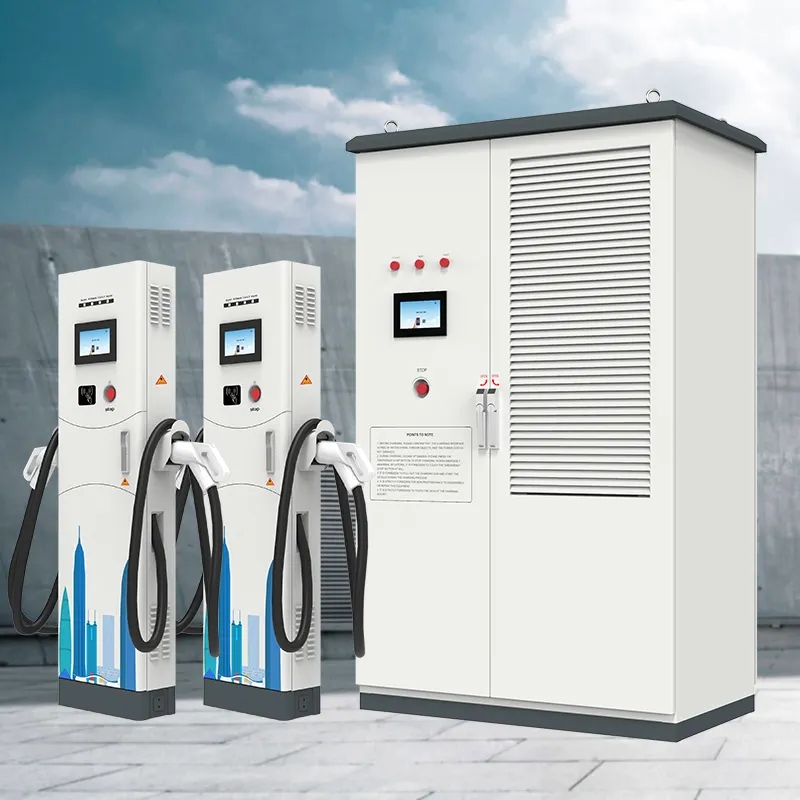

Our company's EV charging station
Meet the charging needs of multiple scenarios
Meet the charging needs of a wide range of new energy models
Multiple charging protection
convenient operation Reach more charging users
intelligent control
View real-time information at any time
Emergency guarding Emergency stop if necessary
| Power Specification | ||||
| AC Power Input Rating | SAE Standard | IEC Standard | ||
| AC Level 2 | 1-Phase | |||
| 240V | 220V ± 15% | |||
| AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | ||
| 7kW/32A | 7kW/32A | |||
| 10kW/40A | N/A | |||
| Rated Frequency | 50/60Hz | 50/60Hz | ||
| Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||
| User Interface & Control | ||||
| Charging Control | Plug and Play, RFID Card or App | |||
| Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
| External Communication | LAN (RJ-45) and Wi-Fi | |||
| OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||
| Environmental | ||||
| Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||
| Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Protection | ||||
| Protection Ratings | IP 65 | RCD | Type A / Type B | |
| Over Voltage Protection | Yes | Under Voltage Protection | Yes | |
| Over Load Protection | Yes | Short Circuit Protection | Yes | |
| Earth Leakage Protection | Yes | Ground Protection | Yes | |
| Over-temp Protection | Yes | Surge Protection | Yes | |
| Wallbox Mechanical | ||||
| Dimension (H x W x D, mm) | 310 x 220 x 95 | |||
| Weight | ＜7kg | |||
| Charging Cable Length | 5m or Customize Length | |||
| Enclosure Material | PC+ASA | |||
| Mounting Pole Mechanical (Optional) | ||||
| Dimension (H x W x D, mm) | 1400 x 200 x 100 | |||
| Weight | ＜8kg | |||
| Enclosure Material | Metal | |||
| Q1: What is your terms of payment? |
| A: We will recommend our customer to use different terms of payment based on difference in quantity of order. |
| Q2: Do you test all your goods before delivery? |
| A: Yes, we have 100% test before delivery. |
| Q3:Can you produce according to the samples? |
| A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q4: What is your terms of packing? |
| A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
| Q6: Are you Trading Company or manufacturer? |
| A: We are professional EV charger manufacturer. |
