| AC Power Input Rating: | |
|---|---|
| AC Power Output Rating: | |
| Rated Frequency: | |
| Connector Type: | |
| Charging Control: | |
| Indicators: | |
| Quantity: | |
BT-ECG0123
Bestop
07891878542

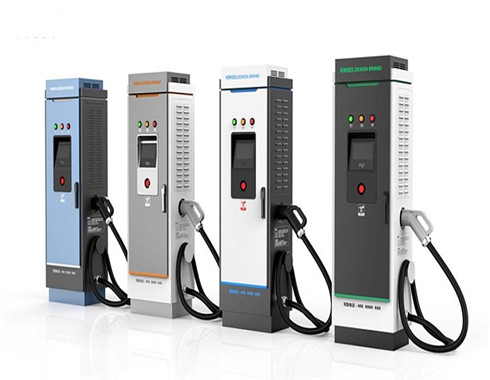

Mainly divided into AC charging piles and DC charging piles. AC charging piles generally have low current, small pile body, flexible installation, and generally take 6-8 hours to fully charge. They are suitable for small passenger electric vehicles and are mostly used in public parking lots, large shopping malls and community garages. Most home charging piles are also AC charging piles. DC charging piles generally have high current, a larger charging capacity in a short period of time, a larger pile body, and a large occupied area (heat dissipation). DC charging piles are suitable for fast DC charging of electric buses, minibuses, hybrid buses, electric cars, taxis, engineering vehicles, etc.
| Power Specification | ||||
| AC Power Input Rating | SAE Standard | IEC Standard | ||
| AC Level 2 | 1-Phase | |||
| 240V | 220V ± 15% | |||
| AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | ||
| 7kW/32A | 7kW/32A | |||
| 10kW/40A | N/A | |||
| Rated Frequency | 50/60Hz | 50/60Hz | ||
| Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||
| User Interface & Control | ||||
| Charging Control | Plug and Play, RFID Card or App | |||
| Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
| External Communication | LAN (RJ-45) and Wi-Fi | |||
| OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||
| Environmental | ||||
| Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||
| Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Protection | ||||
| Protection Ratings | IP 65 | RCD | Type A / Type B | |
| Over Voltage Protection | Yes | Under Voltage Protection | Yes | |
| Over Load Protection | Yes | Short Circuit Protection | Yes | |
| Earth Leakage Protection | Yes | Ground Protection | Yes | |
| Over-temp Protection | Yes | Surge Protection | Yes | |
| Wallbox Mechanical | ||||
| Dimension (H x W x D, mm) | 310 x 220 x 95 | |||
| Q1: What is your terms of payment? |
| A: We will recommend our customer to use different terms of payment based on difference in quantity of order. |
| Q2: Do you test all your goods before delivery? |
| A: Yes, we have 100% test before delivery. |
| Q3:Can you produce according to the samples? |
| A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q4: What is your terms of packing? |
| A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
| Q6: Are you Trading Company or manufacturer? |
| A: We are professional EV charger manufacturer. |
