| AC Power Input Rating: | |
|---|---|
| AC Power Output Rating: | |
| Rated Frequency: | |
| Connector Type: | |
| Charging Control: | |
| Indicators: | |
| Quantity: | |
BT-ECG
Bestop
0789159
They are mainly divided into public charging piles, dedicated charging piles and self-use charging piles. This is just a distinction between the uses of charging piles, and charging piles for different service objects can also interchange roles. Public charging piles are purchased by government agencies and other public service institutions, and the service objects are any electric car owners, such as public parking lots. Dedicated charging piles are mostly built by enterprises, and the service objects are customers and internal personnel, such as shopping mall parking lots. Self-use charging piles are private charging piles, installed in private areas, and not open to the public.

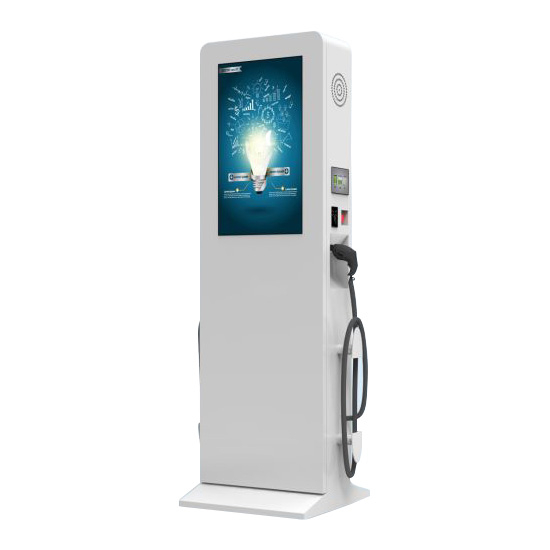

Our company's charging pile products:
Technological appearance
Meet the charging needs of various scenes
Meet the charging needs of a wide range of new energy vehicles
Intelligent protection to ensure safe chargingStrict quality control
Safety and Security Functions
| Power Specification | ||||
| AC Power Input Rating | SAE Standard | IEC Standard | ||
| AC Level 2 | 1-Phase | |||
| 240V | 220V ± 15% | |||
| AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | ||
| 7kW/32A | 7kW/32A | |||
| 10kW/40A | N/A | |||
| Rated Frequency | 50/60Hz | 50/60Hz | ||
| Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||
| User Interface & Control | ||||
| Charging Control | Plug and Play, RFID Card or App | |||
| Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
| External Communication | LAN (RJ-45) and Wi-Fi | |||
| OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||
| Environmental | ||||
| Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||
| Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Protection | ||||
| Protection Ratings | IP 65 | RCD | Type A / Type B | |
| Over Voltage Protection | Yes | Under Voltage Protection | Yes | |
| Over Load Protection | Yes | Short Circuit Protection | Yes | |
| Earth Leakage Protection | Yes | Ground Protection | Yes | |
| Over-temp Protection | Yes | Surge Protection | Yes | |
| Wallbox Mechanical | ||||
| Dimension (H x W x D, mm) | 310 x 220 x 95 | |||
| Weight | ＜7kg | |||
| Charging Cable Length | 5m or Customize Length | |||
| Enclosure Material | PC+ASA | |||
| Mounting Pole Mechanical (Optional) | ||||
| Dimension (H x W x D, mm) | 1400 x 200 x 100 | |||
| Weight | ＜8kg | |||
| Enclosure Material | Metal | |||
| Q1: What is your terms of payment? |
| A: We will recommend our customer to use different terms of payment based on difference in quantity of order. |
| Q2: Do you test all your goods before delivery? |
| A: Yes, we have 100% test before delivery. |
| Q3:Can you produce according to the samples? |
| A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q4: What is your terms of packing? |
| A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
| Q6: Are you Trading Company or manufacturer? |
| A: We are professional EV charger manufacturer. |
