BT-SWH-NP300
BESTOP
| Model | Absorbing Area(㎡) | Vacuum tube | vacuum tube | vacuum tube | Tank Capacity(Liter) | Loading Qty(sets) | Loading Qty(sets) |
| Diameter(mm) | Length(mm) | No:(pcs) | 40HQ | 20GP | |||
| BT-SWH-NP80 | 0.64 | 58 | 1800 | 8 | 80 | 235 | 92 |
| BT-SWH-NP100 | 0.8 | 58 | 1800 | 10 | 100 | 200 | 78 |
| BT-SWH-NP120 | 0.96 | 58 | 1800 | 12 | 120 | 170 | 68 |
| BT-SWH-NP150 | 1.2 | 58 | 1800 | 15 | 150 | 141 | 55 |
| BT-SWH-NP180 | 1.44 | 58 | 1800 | 18 | 180 | 118 | 48 |
| BT-SWH-NP200 | 1.6 | 58 | 1800 | 20 | 200 | 108 | 42 |
| BT-SWH-NP240 | 1.92 | 58 | 1800 | 24 | 240 | 90 | 36 |
| BT-SWH-NP300 | 2.4 | 58 | 1800 | 30 | 300 | 72 | 28 |

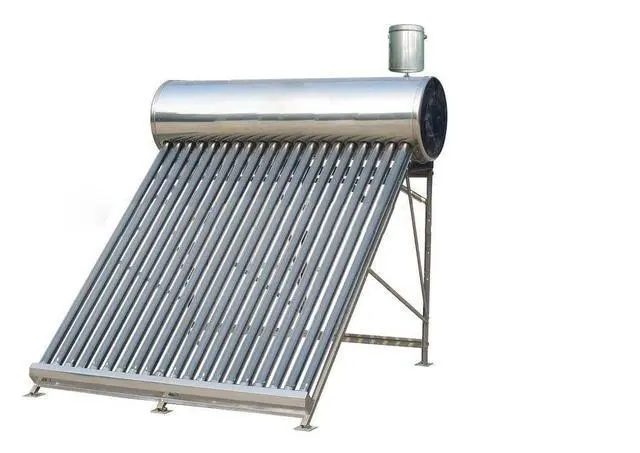

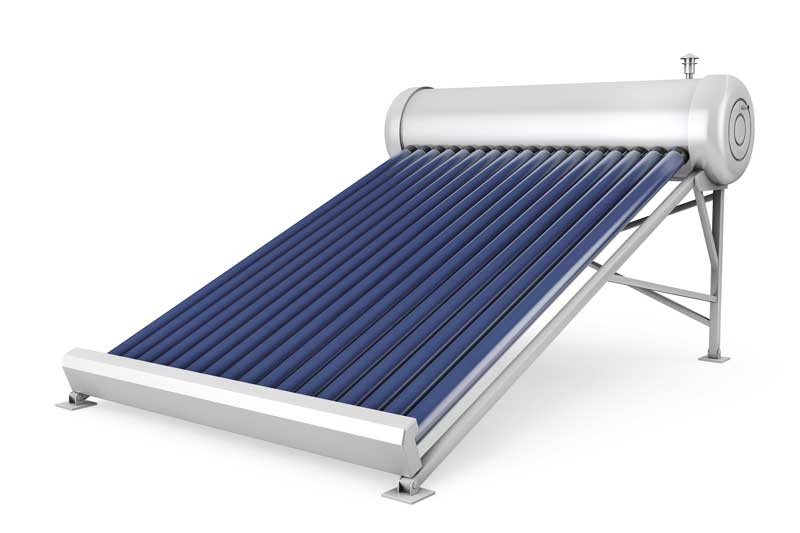

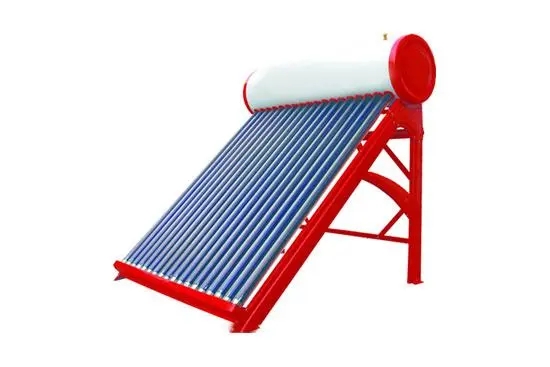

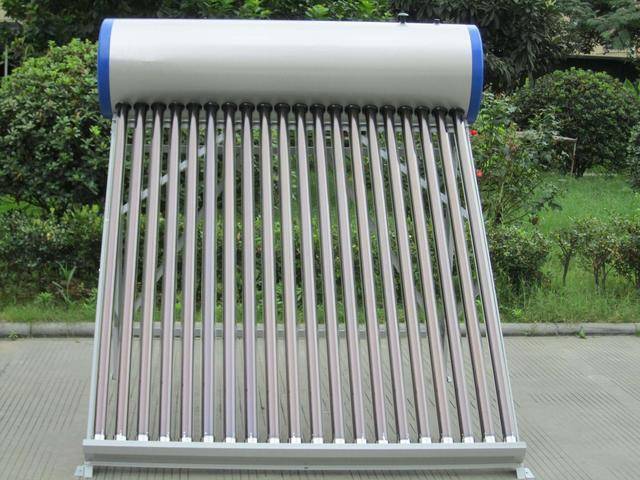

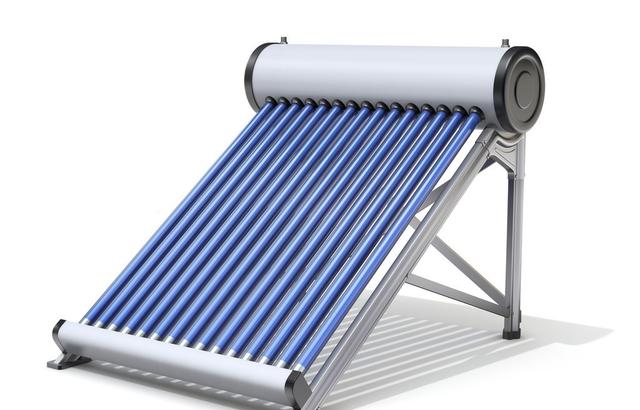

A compact non-pressure solar water heater is a type of solar water heating system designed for domestic or small-scale use. Unlike pressurized systems which rely on pumps and pressure vessels, non-pressure systems operate by natural convection or thermosiphon principle.
Compact Design: These systems are designed to be small and space-efficient, making them suitable for installation in homes with limited roof space or aesthetic considerations.
Non-Pressurized: They operate without the need for pumps or pressure vessels, relying instead on natural convection or thermosiphon principle for water circulation.
Simple Installation: Due to their non-pressurized nature, they are relatively easy and cost-effective to install compared to pressurized systems.
Cost-Effective: They typically have lower upfront costs compared to pressurized systems, making them an attractive option for homeowners looking to invest in solar water heating on a budget.
Low Maintenance: With fewer moving parts and no pumps, non-pressure solar water heaters generally require less maintenance over time.
Energy Savings: By harnessing solar energy to heat water, these systems can significantly reduce reliance on traditional energy sources such as electricity or gas, leading to lower energy bills and decreased environmental impact.
Reliability: Since they don't rely on mechanical components like pumps, non-pressure systems are less prone to breakdowns and can provide a reliable hot water supply even during power outages.
Environmentally Friendly: Solar water heaters produce clean, renewable energy, reducing greenhouse gas emissions and dependence on fossil fuels.
Longevity: With proper maintenance, non-pressure solar water heaters can have a long lifespan, providing years of cost-effective hot water supply.

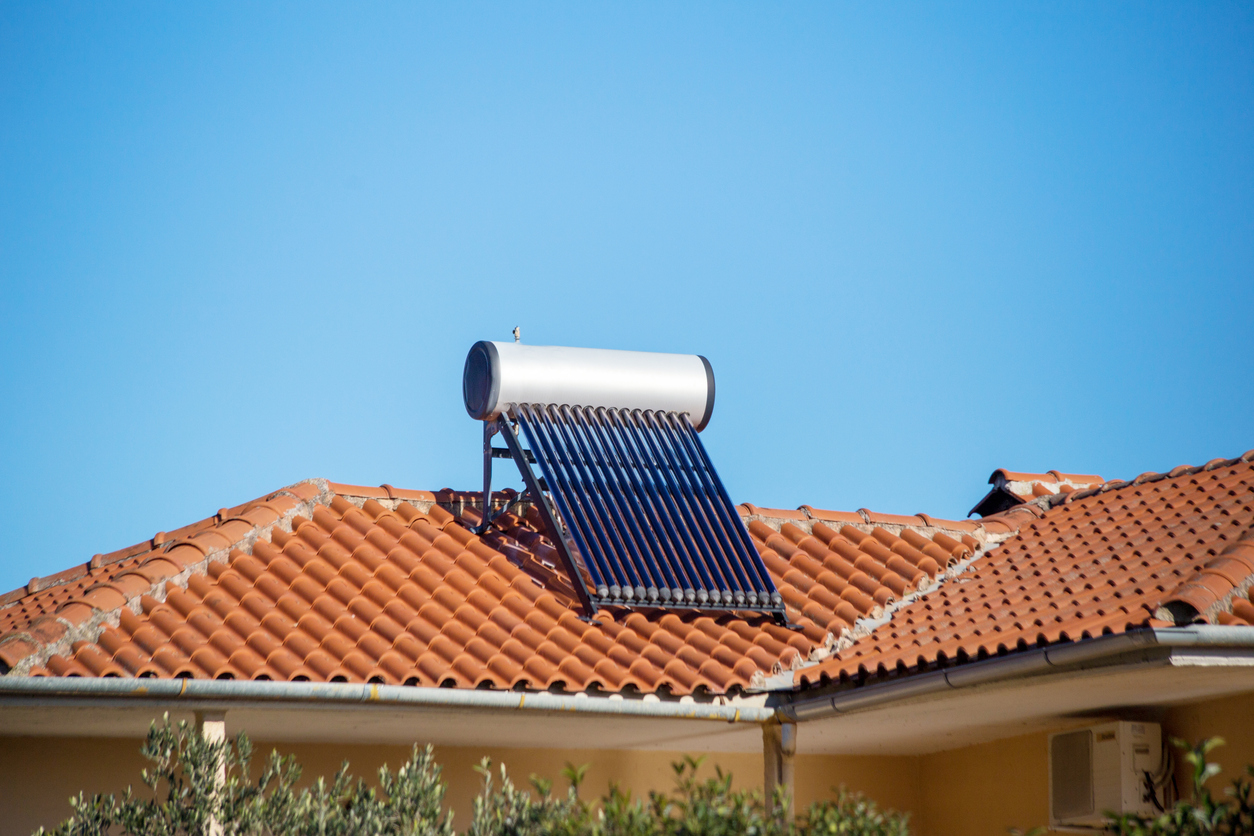

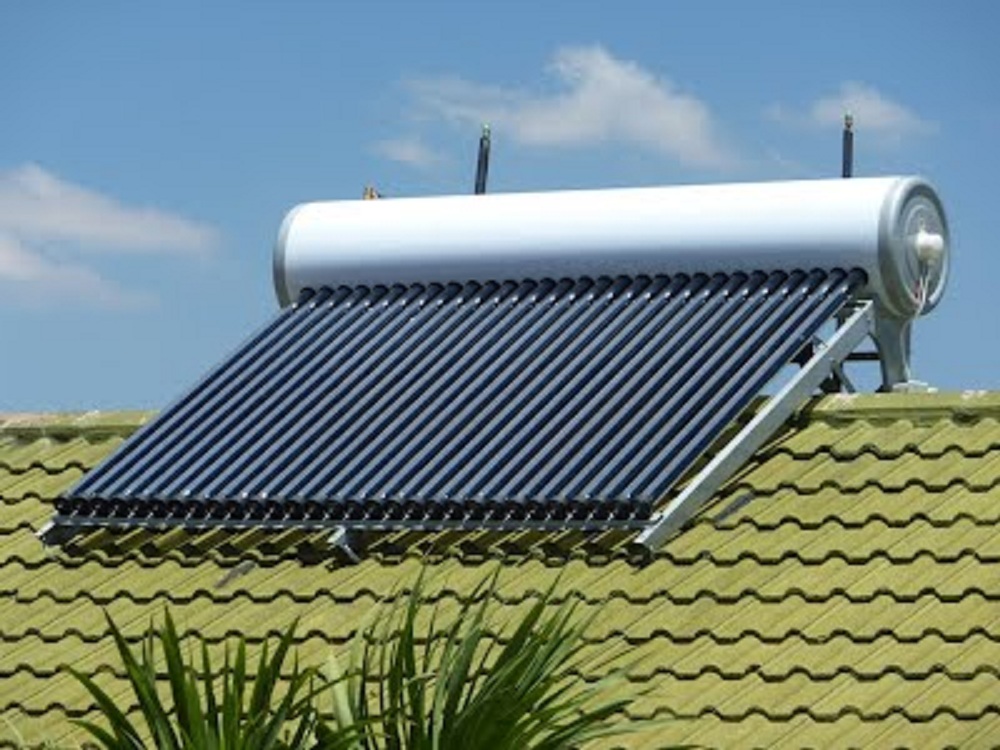

Residential: Compact non-pressure solar water heaters are commonly used in residential settings, providing hot water for bathing, washing, and other household needs.
Rural and Off-Grid Areas: In areas where access to grid electricity or gas is limited, solar water heaters offer a reliable and sustainable alternative for meeting hot water needs.
Remote Locations: They are well-suited for use in remote or isolated locations where infrastructure for traditional water heating methods may be lacking.
Commercial and Industrial: While primarily designed for residential use, non-pressure solar water heaters can also be used in some commercial and industrial applications, particularly in small-scale facilities or for specific purposes such as heating water for swimming pools or agricultural processes.
