BT-ECG
Bestop
0789451

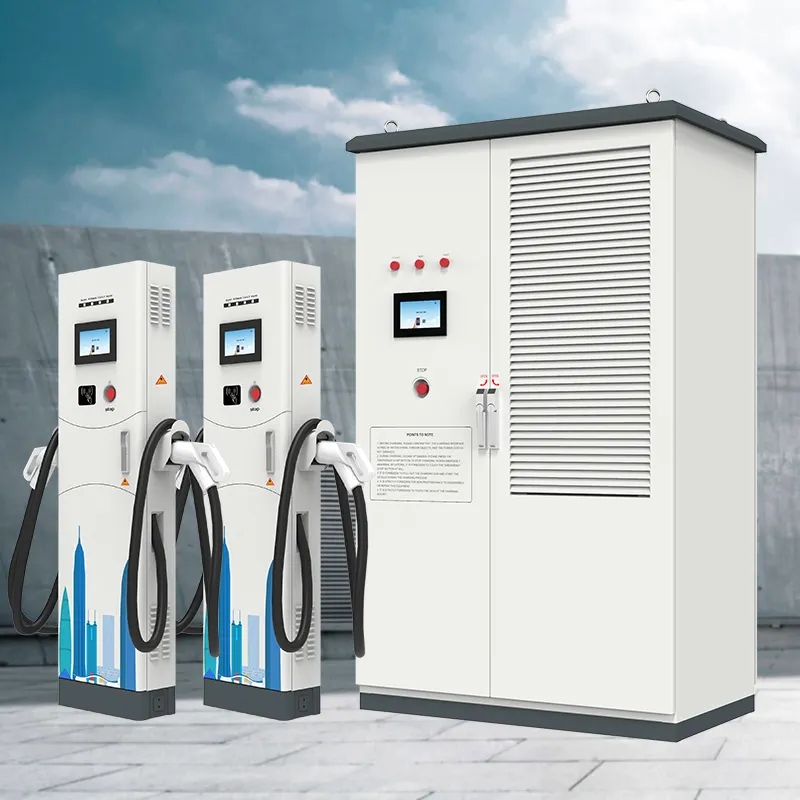

Electric vehicle charging stations are stations for charging electric vehicles. Electric vehicle charging station can better solve the problem of rapid charging, energy saving and emission reduction.
| Power Specification | ||||
| AC Power Input Rating | SAE Standard | IEC Standard | ||
| AC Level 2 | 1-Phase | |||
| 240V | 220V ± 15% | |||
| AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | ||
| 7kW/32A | 7kW/32A | |||
| 10kW/40A | N/A | |||
| Rated Frequency | 50/60Hz | 50/60Hz | ||

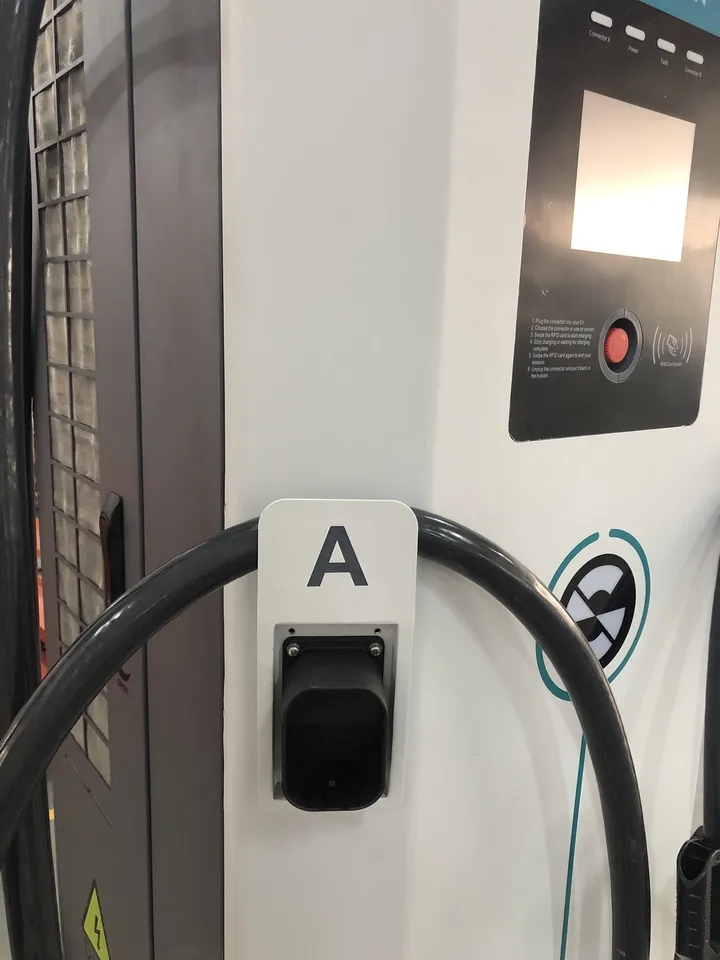

| Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||
| User Interface & Control | ||||

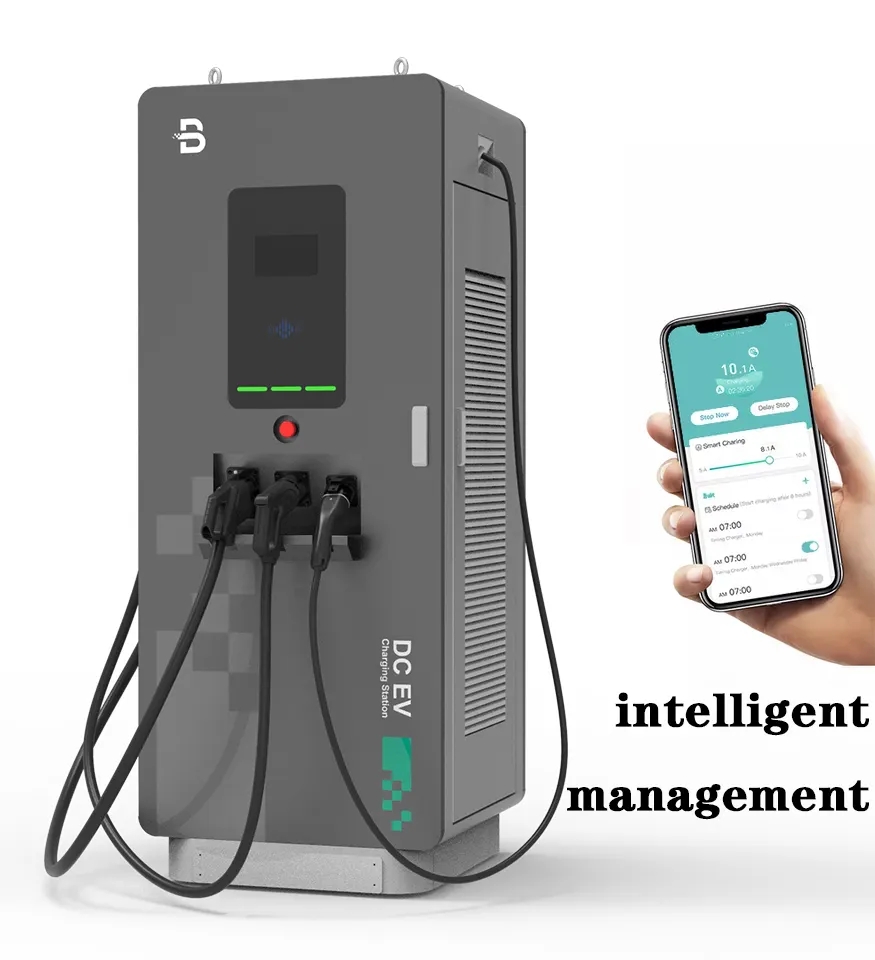

| Charging Control | Plug and Play, RFID Card or App | |||
| Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||
| External Communication | LAN (RJ-45) and Wi-Fi | |||
| OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||
| Environmental | ||||
| Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||
| Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||
| Operating Humidity | Up to 95% non-condensing | |||
| Altitude | ≤2000m | |||
| Protection | ||||
| Protection Ratings | IP 65 | RCD | Type A / Type B | |
| Over Voltage Protection | Yes | Under Voltage Protection | Yes | |
| Over Load Protection | Yes | Short Circuit Protection | Yes | |
| Earth Leakage Protection | Yes | Ground Protection | Yes | |
| Over-temp Protection | Yes | Surge Protection | Yes | |
| Wallbox Mechanical | ||||
| Dimension (H x W x D, mm) | 310 x 220 x 95 | |||
| Weight | ＜7kg | |||
| Charging Cable Length | 5m or Customize Length | |||
| Enclosure Material | PC+ASA | |||
| Mounting Pole Mechanical (Optional) | ||||
| Dimension (H x W x D, mm) | 1400 x 200 x 100 | |||
| Weight | ＜8kg | |||
| Enclosure Material | Metal | |||
| Q1: What is your terms of payment? |
| A: We will recommend our customer to use different terms of payment based on difference in quantity of order. |
| Q2: Do you test all your goods before delivery? |
| A: Yes, we have 100% test before delivery. |
| Q3:Can you produce according to the samples? |
| A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q4: What is your terms of packing? |
| A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. |
| Q6: Are you Trading Company or manufacturer? |
| A: We are professional EV charger manufacturer. |
